GREMLIN Grenade Launcher

GREMLIN Overview

The GREMLIN is a cutting-edge semi-automatic or fully automatic grenade launcher, merging the sustained firepower of a belt-fed system with the precision of a lightweight mortar. Designed for infantry and vehicle-mounted use, it features a recoil-driven belt feed for dismounted operations and an optional motor-driven recoil system for vehicles. The system includes advanced muzzle velocity control via a pressure drop valve with venting, recoil-reducing shock absorbers, and a networked ballistic calculator integrated with battle control systems and UAVs. Compatibility with 40 × 53 mm and belted 40 × 51 mm ammunition ensures versatility across urban, long-range, and vehicular combat scenarios, with enhanced accuracy for indirect fire through precise velocity adjustments.

Technical Specifications

Design Features

For dismounted use, the GREMLIN's recoil-driven belt feed cycles linked 40 × 53 mm or 40 × 51 mm belts using a recoil and spring mechanism, achieving high fire rates with minimal effort. In vehicle-mounted configurations, a motor-driven recoil system replaces the recoil mass, using an electric motor to cycle rounds and advance belts, supporting extended magazines and higher fire rates. The pressure drop valve, equipped with venting, allows precise muzzle velocity control, which is critical for indirect fire at high angles. By reducing velocity (e.g., from 241 m/s to 140 m/s for 40 × 53 mm using a 15 mm² vent over the first 50 mm of the barrel), the system lowers the trajectory altitude, reducing exposure to variable high-altitude winds and making wind effects more predictable. This, combined with the networked ballistic calculator, significantly improves accuracy for indirect fire missions. Shock absorbers ensure operator comfort (dismounted) or platform stability (vehicle-mounted), while the calculator interfaces with battle control systems and UAVs, receiving target coordinates, imagery, and environmental data for precise firing solutions. Belted 40 × 51 mm rounds enable specialized missions, including less-lethal operations.

Vehicle-Mounted Benefits

• Increased Fire Rate: The motor-driven system achieves up to 60 rounds per minute, leveraging vehicle power for rapid, sustained fire.
• Enhanced Reliability: Electric motor eliminates reliance on recoil energy, ensuring consistent cycling even with low-velocity 40 × 51 mm rounds or in adverse conditions.
• Reduced Operator Workload: Automated cycling frees crew to focus on targeting and coordination, integrating seamlessly with vehicle fire control systems.
• Extended Ammunition Capacity: Supports 64-round belts, reducing reload frequency during prolonged engagements.
• Platform Stability: Shock absorbers and motor-driven damping minimize recoil transfer, preserving vehicle alignment and crew safety during high-angle indirect fire.

GREMLIN Hybrid Concept

The GREMLIN hybrid bridges grenade launchers (e.g., Mk 19) and mortars (e.g., M224), offering lightweight versatility for infantry and enhanced firepower for vehicles. Its dual-mode feed (recoil-driven dismounted, motor-driven vehicle-mounted), networked ballistics, belted 40 × 51 mm compatibility, and advanced muzzle velocity control deliver precision and adaptability across modern battlefields, particularly for indirect fire at high angles.

Key Features of the Hybrid Concept

• Unified Ammunition System: Supports 40 × 53 mm and belted 40 × 51 mm rounds, aligning with NATO stockpiles.
• Dual-Mode Operation: Switches between direct and indirect fire, with the pressure drop valve tailoring velocity for optimal accuracy. For high-angle indirect fire, the valve's venting capability reduces muzzle velocity, lowering the trajectory altitude to minimize wind effects and enhance predictability.
• Enhanced Mobility: Dismounted: Under 23 / 13 kg for infantry teams. Vehicle-Mounted: Integrates with light vehicles (e.g., MRAPs, JLTVs) without compromising mobility.
• Smart Sighting Integration: Ballistic calculator syncs with battle control systems, UAVs, and vehicle fire control, adjusting for atmospheric conditions (pressure, temperature, humidity) and real-time target data. For example, reducing the 40 × 53 mm muzzle velocity from 241 m/s to 140 m/s lowers the trajectory apogee, ensuring more consistent wind drift and improving accuracy for targets at 2800 m. Optional night vision and laser rangefinders further enhance targeting precision.
• Modular Accessories: Includes ballistic shields (dismounted) and vehicle mounting kits with power interfaces for motor-driven systems.

Logistical and Tactical Advantages

1. Streamlined Logistics: Dual-caliber belts simplify resupply for infantry and vehicle crews.
2. Superior Mobility: Dismounted weight (23 kg) and vehicle compatibility enhance deployment flexibility.
3. Tactical Versatility: Engages targets from 50 meters (40 × 51 mm direct) to 2800 meters (40 × 53 mm indirect), with networked precision optimized for high-angle fire.
4. Vehicle-Mounted Efficiency: Motor-driven system boosts fire rate and reliability, integrating with onboard systems for rapid, accurate response in indirect fire scenarios.

Potential Impact on Modern Warfare

The GREMLIN hybrid empowers infantry squads and vehicle crews with networked fire support. Belted 40 × 51 mm rounds enable less-lethal or close-range roles, while UAV-linked ballistics, vehicle-mounted motor systems, and muzzle velocity control ensure accuracy and speed in dynamic environments. For indirect fire at high angles, the ability to reduce muzzle velocity via venting (e.g., to 140 m/s for 40 × 53 mm) minimizes trajectory altitude, making wind effects more predictable and enhancing accuracy. This system could redefine small-unit and mounted tactics, providing organic firepower with enhanced coordination.

Future Development Considerations

The GREMLIN hybrid's advancements set the stage for further innovation:

• Ammunition Innovation: Programmable 40 × 53 mm and 40 × 51 mm rounds (e.g., airburst, less-lethal) for versatility.
• Weight Reduction: Advanced composites to target 21 kg (dismounted) and 14 kg (vehicle-mounted, excluding mounts).
• Network and UAV Integration:
  • Enhance ballistic calculator compatibility with NATO-standard networks and next-generation UAVs.
  • Develop automated target handoff from UAVs to vehicle-mounted systems for near-instantaneous engagements.
• Motor-Driven System Enhancements (Vehicle-Mounted):
  • Mechanism: Electric motor cycles rounds and advances belts (up to 64 rounds), synced with vehicle power (12V/24V systems). Adjustable for burst or continuous fire.
  • Reliability: Motor eliminates recoil dependency, ensuring performance with variable ammunition types or in extreme conditions (e.g., dust, cold).
  • Recoil Management: Shock absorbers and motor damping reduce platform vibration, maintaining turret accuracy during high-angle fire.
  • Integration: Interfaces with vehicle fire control systems, feeding ballistic data and UAV coordinates for streamlined targeting.
  • Weight Impact: Adds 2 kg to body, offset by lightweight alloys.
• Muzzle Velocity Control Enhancements: Further refine the pressure drop valve's venting mechanism to allow dynamic velocity adjustments based on real-time atmospheric data, optimizing high-angle indirect fire accuracy.

Advantages

Advantages of Motor-Driven System (Vehicle-Mounted)

• Consistent Performance: Motor ensures reliable cycling, unaffected by ammunition velocity or environmental factors.
• Crew Efficiency: Automation reduces manual tasks, allowing focus on situational awareness and network coordination.
• Sustained Operations: Larger belts (64 rounds) support prolonged missions without reloading.
• Vehicle Integrity: Minimized recoil preserves platform stability, critical for light vehicles or remote weapon stations during indirect fire.

Advantages of Overall Design

• Networked Precision: UAV and battle control integration delivers real-time targeting, enhanced by velocity control for indirect fire accuracy.
• Ammunition Flexibility: Belted 40 × 51 mm supports diverse missions.
• Operator Comfort: Shock absorbers ease dismounted use; motor systems and velocity control enhance vehicle crews' effectiveness in high-angle fire scenarios.
• Motor System Integration: Ensuring motor-driven reliability across vehicle power systems (e.g., voltage fluctuations) and compatibility with remote weapon stations.
• Network Security: Battle control and UAV links require robust encryption to counter electronic warfare threats.
• Recoil Calibration: Dismounted system must balance 40 × 53 mm and 40 × 51 mm recoil; vehicle system must minimize platform stress during high-angle fire.
• Durability: Motor, electronics, shock absorbers, and pressure drop valve must withstand 6000 rounds and vehicular vibrations.
• Belted 40 × 51 mm Reliability: Linked belts must perform flawlessly in both recoil- and motor-driven feeds.

The GREMLIN hybrid, with its dual-mode feed (recoil-driven dismounted, motor-driven vehicle-mounted), pressure drop valve with venting, shock-absorbed recoil, networked ballistics, and belted 40 × 51 mm compatibility, transforms fire support. The ability to control muzzle velocity using vents optimizes high-angle indirect fire by reducing trajectory altitude, making wind effects more predictable and improving accuracy. For example, lowering the 40 × 53 mm velocity to 140 m/s ensures more stable flight paths for targets at 2800 m, leveraging the ballistic calculator's real-time atmospheric adjustments. The motor-driven system enhances vehicle-mounted performance, delivering high-rate, reliable firepower with seamless integration into networked warfare. From infantry squads to armored patrols, this system offers precision, versatility, and lethality, potentially reshaping modern tactics.

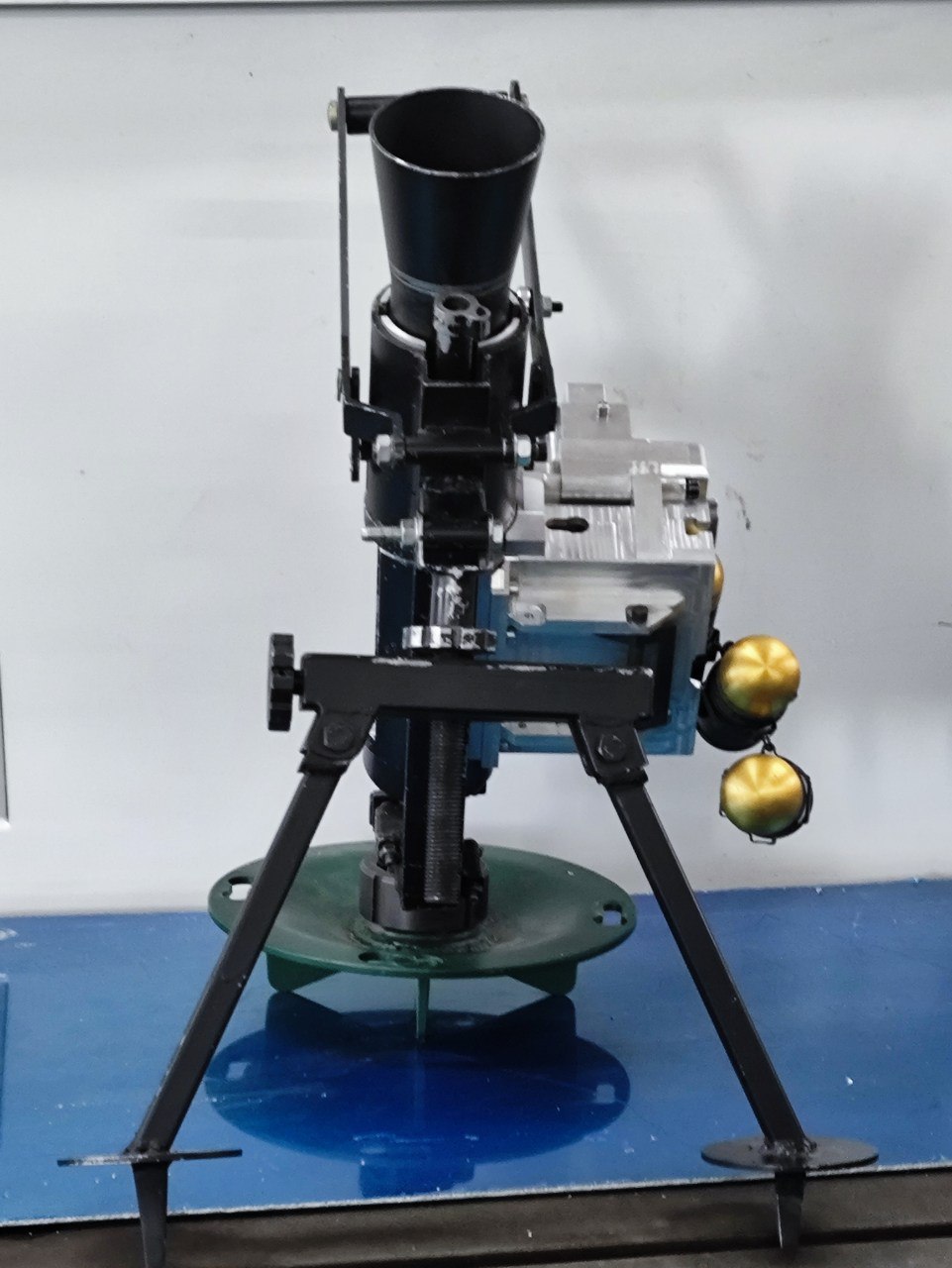

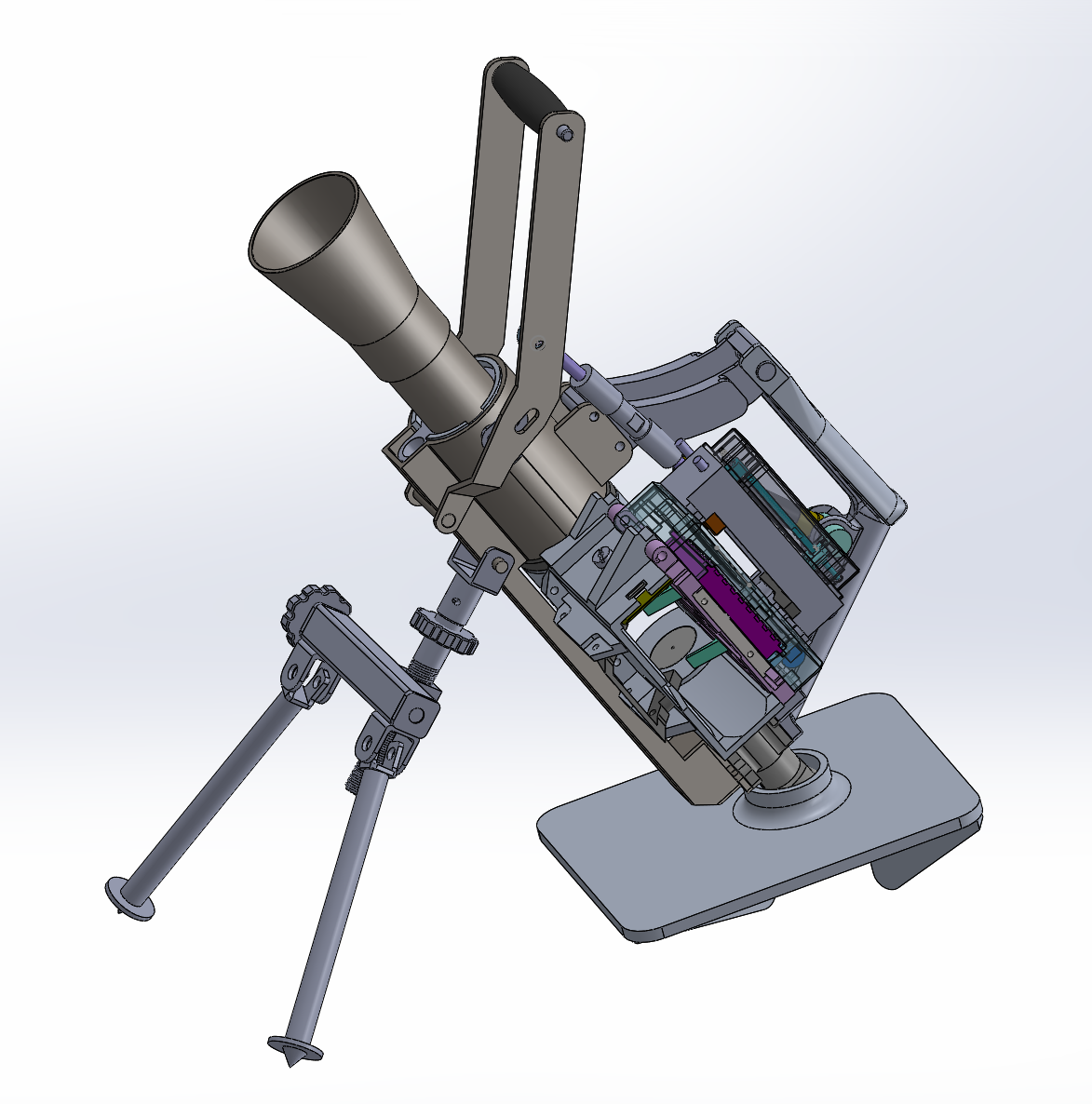

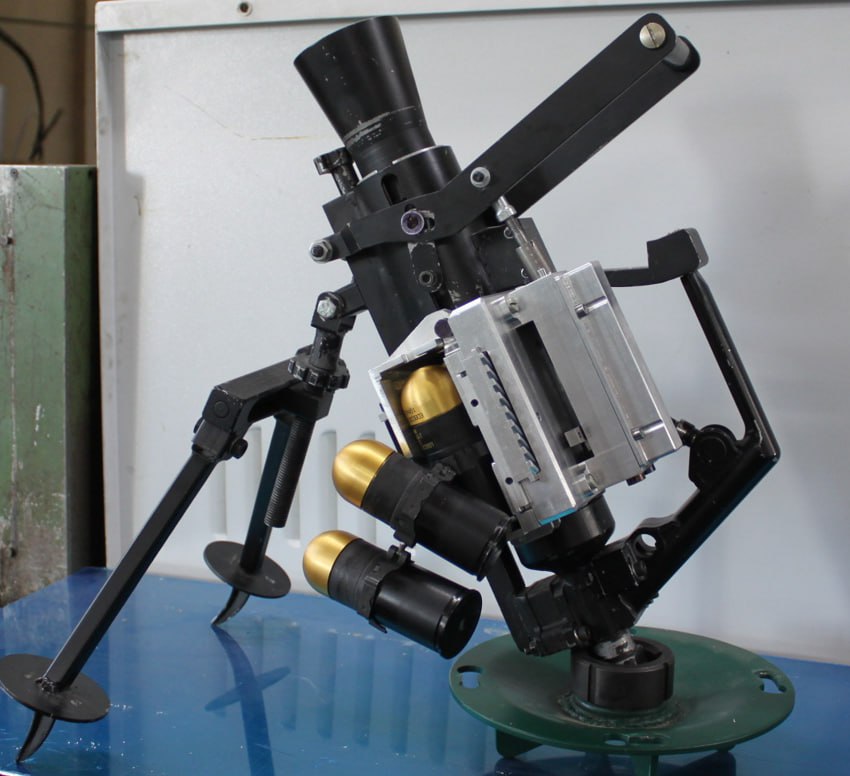

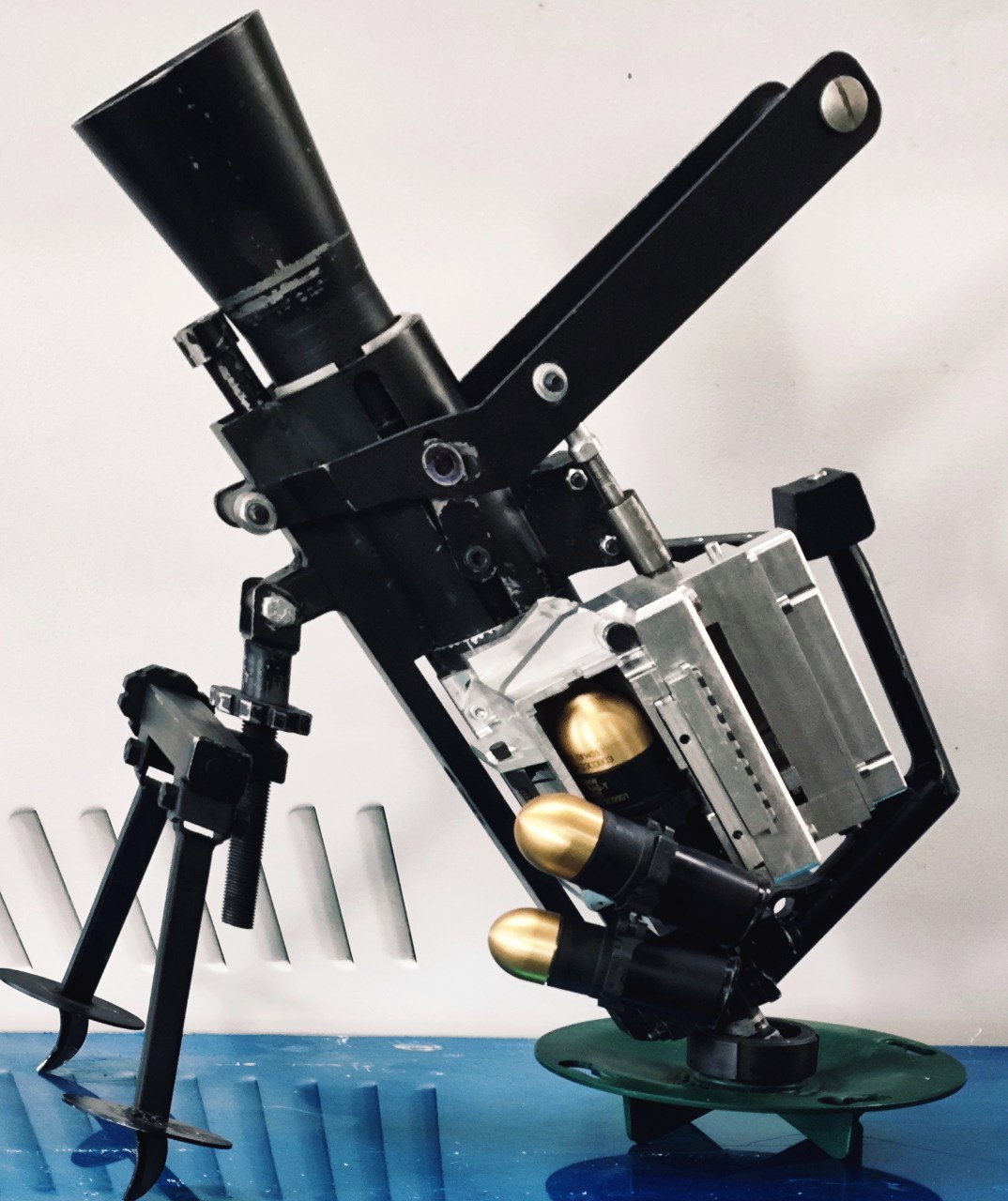

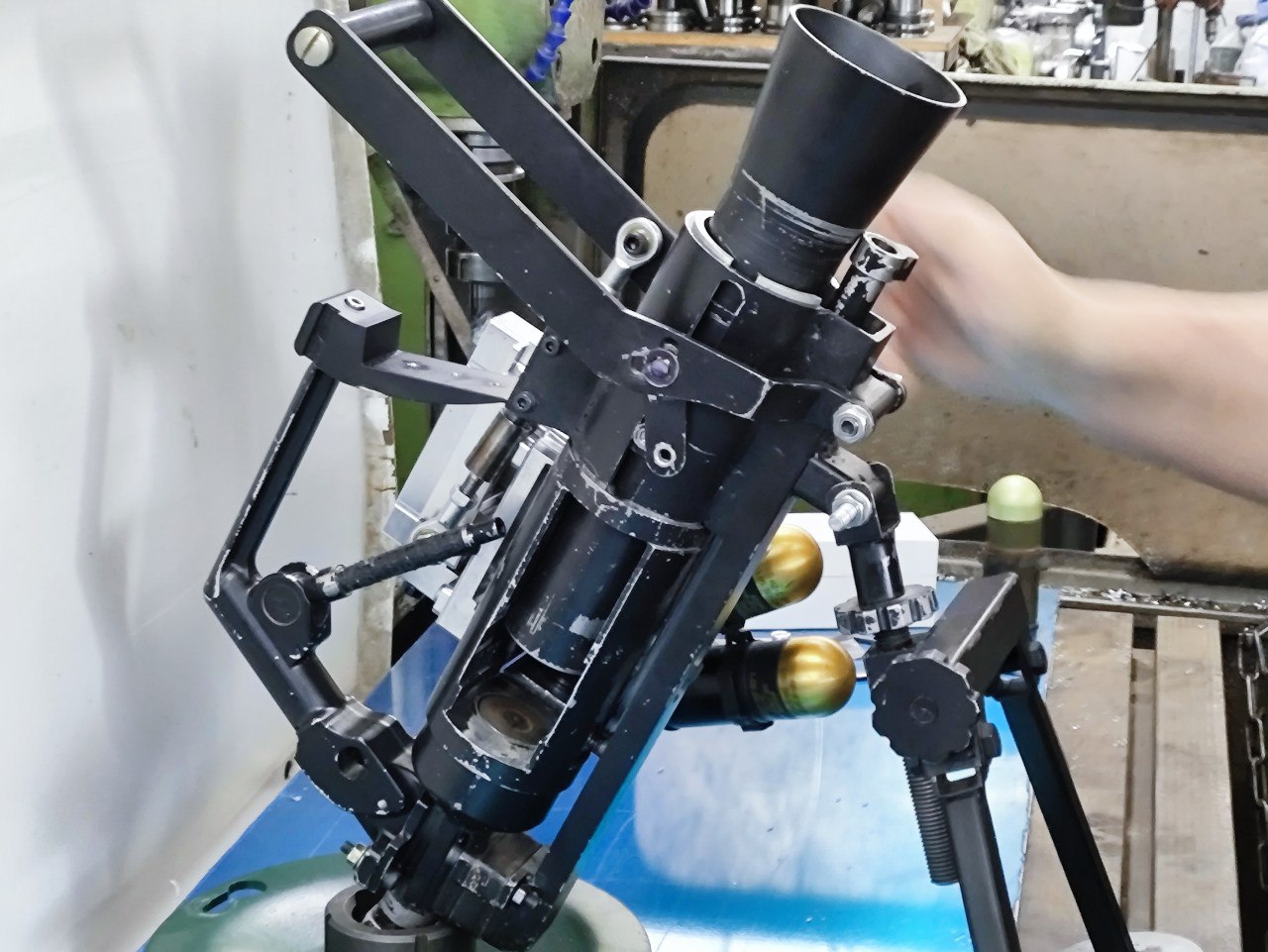

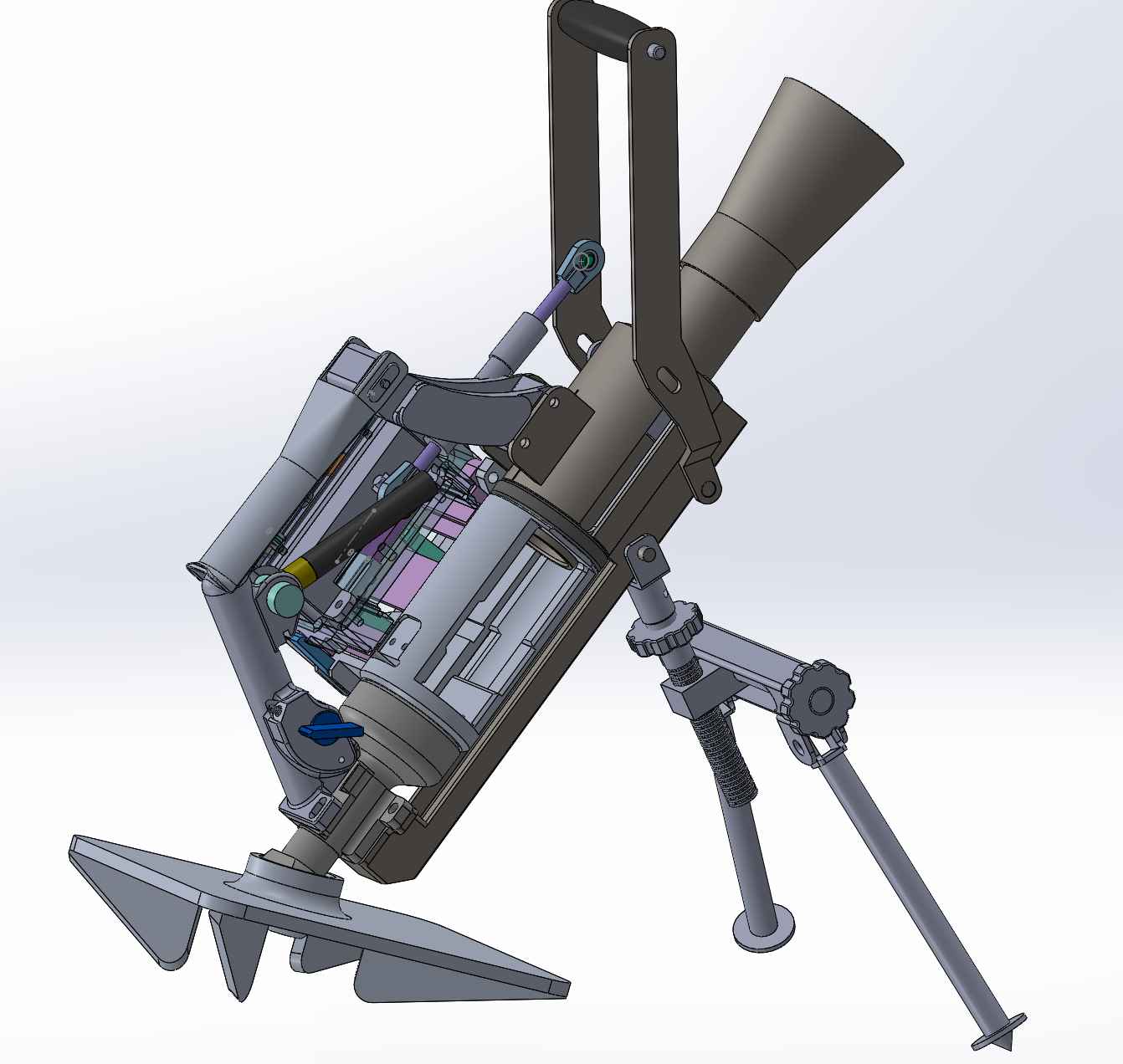

Prototype Pictures
